SERIES 50V DC to 3000 V DC Epoxy-Dipped Multilayer Capacitor
- Radial Type |
| Features
and specification : |
DIELECTRIC
TYPE
The choice of dielectric is largely determined by the temperature
stability required:
NPO Ultra Stable Class I dielectric, with predictable
change of electrical properties on temperature, voltage, frequency
and time. Used in circuits requiring stable performance.
X7R Stable Class II dielectric, with predictable change
of properties with temperature, voltage, frequency and time.
Used as blocking, coupling, by - passing and frequency discriminating elements.
This dielectric is ferroelectric and offers higher capacitance
ranges than class I.
Y5V(Z5U) General purpose Class II dielectric with highest
dielectric constant and greater variation of properties
with temperature and test conditions. Very high capacitance
per unit volume and suited for bypass and coupling application
as well as filtering, transient suppression blocking, and change
storage application.
CAPACITANCE VALUE AND TOLERANCE
Determined
by circuit requirements. NOTE that chip prices decrease with
lower capacitance value and looser tolerances. Capacitance
range : 0.5pF to 1.0uF.
VOLTAGE
Determined
by circuit requirement. Unit are designed to exceed the withstanding
voltage specification, i.e. the user need not incorporate
an additional safety margin.
CAPACITOR TERMINATION
Termination
choice is largely determined by the chip attachment method.
Nickel barrier is recommended for units exposed to repeated
solder cycles, to preclude leaching of the termination. Silver
is used on units to be lead attached, as the more ductile
silver minimizes thermal cycling hazards.
PACKAGING
Units are
available in bulk, some sizes on tape and reel, specify if
reeled.
|
|
Click for Large Photo | |
HOW
TO ORDER
CAPATRONICS Part Numbers are designated as :
RD
 |
|
21
|
|
ZU
|
|
104
|
|
Z
|
|
500
|
|
RR
|
| CAPATRONICS |
|
SIZE |
|
DIELECTRIC CODE |
|
CAPACITANCE CODE |
|
TOLERANCE CODE |
|
RATED VOLTAGE CODE |
|
PACKAGING CODE |
| SERIES |
|
CODE |
|
CG |
COG(IB) |
|
Capacitance
expressed in PF |
|
|
Code |
Tolerance |
|
2 significant digits |
|
RR |
Radial-Leaded,
|
|
|
|
|
|
XR |
X7R (2R1) |
|
First
two digits are significant figures. |
|
J |
+ 5 % |
|
+ |
|
|
Reel
Package |
|
|
|
|
|
ZU |
Z5U (ZE6) |
|
third
digit denotes number of zeros. |
|
K |
+10 % |
|
Number of zeros |
|
BR |
Radial-Leaded,
|
|
|
|
|
|
|
|
|
e.g. 101 : 100pF |
|
|
M |
+20 % |
|
250 : 25V |
|
|
Box
Package |
|
|
|
|
|
|
|
|
223 : 22nF or .022uF |
|
|
Z |
|
|
+80
-20 |
% |
|
|
500 : 50V |
|
No Code |
Bulk |
|
|
|
|
|
|
|
|
104 : 100nF or 0.1uF |
|
|
P |
|
|
+100
-0 |
% |
|
|
101 : 100V |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
V |
GMV |
|
501 : 500V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HOW
TO ORDER |
| CAPATRONICS
Part Numbers are designated as : |

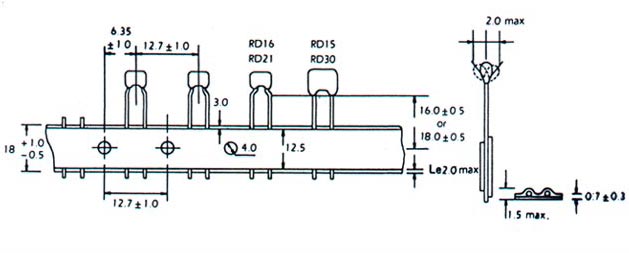

TAPING
DIMENSIONS (mm)
 |

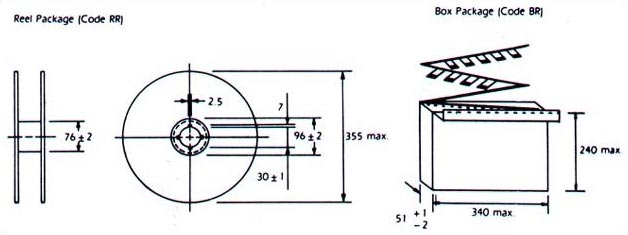

REEL
and BOX DIMENSIONS (mm)
 |
PACKAGING
QUANTITY
| Size
Code |
Taping
Type |
bulk
Type |
| RD15.RD16 |
3.000 |
2.000 |
1.000 |
| RD20.RD21 |
3.000 |
2.000 |
1.000 |
| RD30 |
3.000 |
1.500 |
500 |
|

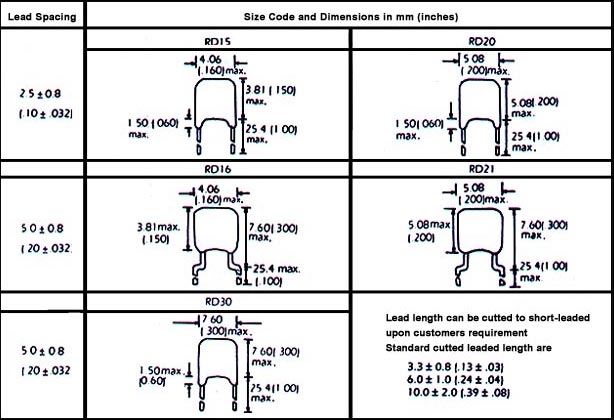

Style
and Dimensions
Special
lead styles can be available upon request
