CERAMIC
DISC CAPACITOR
CLASS I-TEMPERATURE COMPENSATE CAPACITOR |
| FEATURES |
- Low
DF, stable capacitance, the linear capacitance change
with temperature.
- Designed
from all series T.C. suits for oscillation and temperature
compensate circuit.
|
|
TEMPERATURE
COEFFIENT (T.C)
| Tolerance |
(T.C) |
EIA
Code |
GBJIS
Code |
| 0
± 60 |
NPO |
COH |
CH |
| -33
± 30 |
N33 |
S1H |
SH |
| -75
± 60 |
N75 |
U1H |
UH |
| -150
± 60 |
N150 |
P2H |
PH |
| -220
± 60 |
N220 |
R2H |
RH |
| -330
± 60 |
N330 |
S1H |
SH |
| -470
± 60 |
N470 |
T2H |
TH |
| -750
± 60 |
N750 |
U2J |
UJ |
| +140
~ -1000 |
Q140
~ n1000(SL) |
S2L |
SL |
|
1PF~360PF
CAPACITANCE RANGE AND TOLERANCE
| Code |
Tolerance |
(PF)
Nominal capacitance |
| C |
±
0.25pF |
1,2,3,4,5 |
| D |
±
0.5pF |
3,4,5,6,7,8,9 |
| F |
±
1% |
6,7,8,9,10 |
| J |
±
5% |
>10pF |
| K |
±
10% |
| M |
±
20% |
|
| CLASS
II - HIGH DIELECTRIC CONSTANT CAPACITOR |
| FEATURES
The greater variation
of T.C are available for by-passing, coupling, low DF and
frequency discriminating circuit.
T.C
AND TOLERANCE
| T.C |
TOLERANCE |
| K(+10%) |
M(+20%) |
Z(+80,-20%) |
P(+100,-0%) |
| X5F,Y5F,Z5F |
0 |
0 |
0 |
0 |
| Y5P,Z5P,X7R |
0 |
0 |
0 |
0 |
| Y5U,Z5U |
0 |
0 |
0 |
0 |
| Y5V |
0 |
0 |
0 |
0 |
| Z5V |
0 |
0 |
0 |
0 |
Remark
: 0 = It means can be used |
CLASS
III-SEMICONDUCTOR DIELECTRIC CAPACITOR
FEATURES
-
High capacitance, small volume
- Used in low impedance circuit of requiring low IR. |
TECHNICAL
SPECIFICATIONS
| Item |
Specifications |
| Capacitance
Range |
0.01pF~0.22uF |
| Tolerance |
M(±
20%) Z (+80,-20%) |
| Coating |
Phenol-formaldehyde
resin |
|
T.C
AND TOLERANCE
| T.C |
TOLERANCE |
| K |
M |
Z |
| Y5R,Y5P,SR |
±
10% |
±
20% |
+80%,
-20% |
| Y5T.Y5U |
- |
±
20% |
+80%,
-20% |
| Y5V |
- |
- |
+80%,
-20% |
|
| CLASS
IV-LOW DF OF HIGH VOLTAGE DISC CAPACITORS
These
mediums HIGH-VOLTAGE ceramic capacitors have a primary of
SriTi03 and provide low voltage distortion and piezoelectric
effects as well as excellent.
TEMPERATURE,
BIAS AND FREQUENCY CHARACTERISTICS
This very low Dissipation factor <0.5%v - Y5p/BN
DF<0.2%
- Y5R/RR
Insulation
resistance > 10G W
capacitance Range : 150pF-2700pF, 1KV to 2KV
Safety
Capacitor :
|
TYPE |
VOLTAGE RANGE |
|
X1Y1 |
AC-250V to AC-400V |
|
X1Y2 |
Ac-250V to AC-400V |
With 8 countries safety approval
|
HOW
TO ORDER
| |
T
 |
|
06
|
|
F
|
|
NPO
|
|
|
4
|
|
B
|
|
121
|
|
J
|
|
|
TB
|
| FREQ : |
|
Size Code |
|
Rated |
|
Temperature |
|
Lead |
|
Lead |
|
Capacitance
(pF):1 |
|
Capacitanc |
|
|
Pack |
| H
: 1KHZ |
|
D/a |
Code |
|
Voltage |
|
Coefficient |
|
|
Configuration |
|
spacing
+0.8mm |
|
1
2 1 = 12 x 10 = 120pF |
|
Tolerance Code |
|
|
Taping Box |
| T: 1MHZ |
|
3.4 |
04 |
|
F |
50V |
|
CH |
NPO |
|
|
|
|
|
A |
2.5m/m |
|
x x x |
|
Code |
Tolerance |
|
|
Taping Reel |
| |
|
5.8 |
06 |
|
G |
63V |
|
HH |
N33 |
|
|
|
|
|
B |
5m/m |
|
Multiplier (Numeric) |
|
J |
+ 5% |
|
|
Bulk |
| |
|
12 |
13 |
|
|
|
|
TH |
N470 |
|
|
|
|
|
C |
6.4m/m |
|
First (s) Significant |
|
K |
+10% |
|
|
|
| |
|
15 |
15 |
|
|
|
|
|
|
|
|
|
|
|
D |
7.6m/m |
|
Figures (numeric) |
|
M |
+20% |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E |
9.5m/m |
|
|
|
S |
+50% -20% |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Z |
+80% -20% |
|
|
|
|
|
Specification
subject to change without prior notice.
|

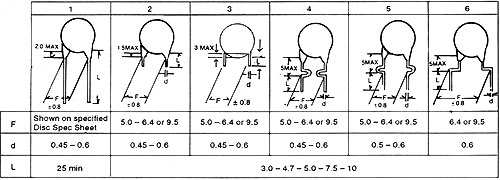

LEAD
CONFIGURATION
|
TAPING

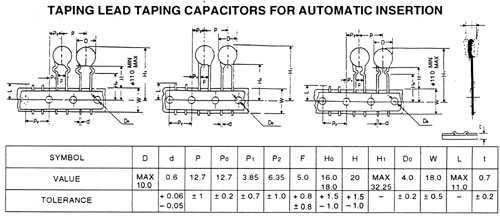

LEAD TAPING CAPACITORS FOR AUTOMATIC INSERTION
|
| SYMBOL |
D |
d |
P |
Po |
P1 |
P2 |
F |
Ho |
H |
H1 |
Do |
W |
L |
t |
| VALUE |
MAX
10.0 |
0.6 |
12.7 |
12.7 |
3.85 |
6.35 |
5.0 |
16.0
18.0 |
20 |
MAX
11.0 |
4.0 |
18.0 |
MAX
11.0 |
0.7 |
| TOLERANCE |
1 |
+
0.06
-0.05 |
±
1 |
±
0.2 |
±
0.7 |
±
1.0 |
±
0.8
± 0.8 |
+
1.5
-1.0 |
+1.5
-1.0 |
- |
±0.2 |
±0.5 |
- |
±
0.2 |
|
PACKAGING
QUANTITY:
| PACKAGE |
ONE
BOX |
CARTON
BOX |
| REEL
PACK |
1,500,2000,2500
PCS |
20,000
PCS |
| ZIGZAG
PACK |
1500,2000
PCS |
15,000
PCS |
| BUIK
(5Ø mm) |
1000
PCS Per poly Bag |
40,000
PCS |
|
| REEL
and BOX DIMENSIONS (mm)
ï
BACK |
