| AD
SERIES Epoxy-Dipped Multilayer Axial Capacitor |
| General
Specifications/Features: |
- Dielectric
Type : X7R(XR), Z5u(ZU), Y5V(F)
-
Size Code ; AD10 and AD20
-
Capacitance Range :
-
10pF to 0.12uF, the choice of capacitance and its body
size is determined by the circuit requirement and cost
consideration
- Tolerance:
+-5%(J), + -10%(K), +-20%(M), +80% -20%(Z)
- Operating
Temperature : COG & X7R = -55°C to 125°C, Z5U = +10°C
to 85°C, Y5V = -30°C to +85°C
-
Packing : Bulk, taped ammo, taped and reel available for auto
placement
-
Working Voltage : 50V DC to 100V DC
|
| Click for
Large Photo | |
|
HOW
TO ORDER
|
| Capatronics
Part Numbers are designated as : |
AD
|
|
10
|
|
ZU
|
|
104
|
|
Z
|
|
500
|
|
AR
|
|
CAPATRONICS
|
|
SIZE
|
|
DIELECTRIC
CODE
|
|
CAPACITANCE CODE
|
|
TOLERANCE CODE
|
|
RATED
VOLTAGE CODE
|
|
PACKAGING CODE
|
|
SERIES
|
|
CODE
|
|
CG
|
COG(IB)
|
|
Capacitance
expressed in PF
|
|
|
Code
|
Tolerance
|
|
|
2 significant digits
|
|
AR
|
Arial
Taping &
|
| |
|
|
|
XR
|
X7R (2R1)
|
|
First
two digits are significant figures.
|
|
J
|
+ 5 %
|
|
+
|
|
|
Reel
Package
|
| |
|
|
|
ZU
|
Z5U (2E6)
|
|
third
digit denotes number of zeros.
|
|
K
|
+10 %
|
|
Number of zeros
|
|
BR
|
Arial,
|
| |
|
|
|
|
|
|
e.g. 101 : 100pF
|
|
|
M
|
+20 %
|
|
500 : 50V
|
|
|
Box
Package
|
| |
|
|
|
|
|
|
223 : 22nF or .022uF
|
|
|
Z
|
|
|
+80 -20
|
%
|
|
|
101 : 100V
|
|
No Code
|
Bulk
|
| |
|
|
|
|
|
|
104 : 100nF or 0.1uF
|
|
|
P
|
|
|
+100 -0
|
%
|
|
|
201 : 200 V
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
V
|
GMV
|
|
|
|
|
|
|
|
|
|
|
|
Size

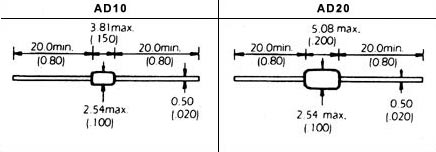

code and Dimensions in mm (Inches)
|
TAPING
DIMENSIONS in mm
|
Packaging
Quantity
| Size
Code |
Tape
and Reel |
Ammo
Package |
| 10 |
5000 |
5000 |
| 20 |
5000 |
5000 |
